80MW Class Gas Turbine Power Solution
ETAC Power 80 MW Class Gas Turbine Power Solution is a reliable natural gas power generation engineered for AI computing loads, utility support, and industrial-scale applications.
- Current Lead Time: 8–10 Months
- Standard Warranty: Standard OEM Warranty
- Certifications:
Lead time is subject to change based on production schedule and market demand.
80MW Gas Turbine Power Solution Standard Specifications
| Parameter | Specification |
|---|---|
| Power Output | 78 MW |
| Turbine Platform | AE64.3A Gas Turbine |
| Frequency | 60 Hz |
| Fuel Type | Natural Gas |
| Generator Voltage | 11 kV |
| Grid Connection | 33 kV |
| Operation Mode | Simple Cycle (SC) |
| Startup Time | Approximately 15 Minutes |
| Installation Type | Utility-Scale Outdoor Plant |
| Grid Capability | Synchronization Ready |
| Application Type | Flexible Regulating Power Unit |
| Deployment Type | Modular Utility-Scale Power Infrastructure |
| Integration | MV Switchgear + Transformer |
| Application | AI Data Center Infrastructure |
AI Infrastructure Deployment Challenges
Large-scale AI computing facilities increasingly face utility power constraints, interconnection delays, and rapidly growing electrical demand requirements.
The ETAC Power 80 MW-class gas turbine solution provides dispatchable on-site generation capable of supporting accelerated AI infrastructure deployment timelines while maintaining utility integration flexibility.
Product Overview
The ETAC Power 80MW-class gas turbine solution is designed to provide fast-response, utility-scale power generation for AI data centers and critical infrastructure applications.
Built around the proven AE64.3A gas turbine platform, the system delivers approximately 78 MW ISO output in a flexible utility-scale configuration. The AE64.3A platform has accumulated more than 3 million operating hours across 65+ units worldwide.
The solution can operate independently or integrate with utility power infrastructure through medium-voltage grid synchronization systems.
Why ETAC Power
ETAC Power delivers integrated utility-scale power infrastructure solutions designed for fast deployment, grid compatibility, and continuous-duty operation.
Our team supports customers through equipment integration, medium-voltage infrastructure coordination, project execution, and long-term technical support for mission-critical applications including AI data centers, industrial facilities, and utility support systems.
The 80 MW-class solution combines proven gas turbine technology with modular electrical infrastructure designed for rapid deployment and scalable expansion.
Typical Applications
- AI Data Centers
- Utility Support Power
- Industrial Power Infrastructure
- Peak Load Regulation
- Remote Power Generation
- Flexible Backup Power
Key Features
- Approximately 78 MW ISO output
- AE64.3A gas turbine platform
- Fast startup capability
- Medium-voltage integration
- Supports synchronization with existing utility infrastructure for hybrid grid-connected operation.
- Enables dispatchable on-site generation to support variable high-density computing demand.
- Designed to support fluctuating AI computing loads and rapid infrastructure scaling requirements.
- Reliable continuous-duty operation
AI Data Center Power Integration
Large-scale AI computing infrastructure increasingly requires reliable, dispatchable power generation capable of supporting accelerated deployment timelines and rapidly growing electrical demand.
Many AI data center developments face utility interconnection delays, limited grid capacity, and infrastructure expansion constraints that can impact project schedules and long-term scalability.
The ETAC Power 80 MW-class solution provides flexible behind-the-meter generation designed to support:
- AI training workloads
- High-density inference computing
- Continuous baseload operation
- Dynamic load-following requirements
- Utility-connected or microgrid deployment configurations
- Campus expansion and supplemental generation capacity
The system supports dispatchable on-site generation while maintaining compatibility with medium-voltage utility infrastructure and grid synchronization requirements.
System Architecture
The 80 MW-class gas turbine solution integrates major power generation and electrical distribution systems into a complete medium-voltage infrastructure platform.
Built around the proven AE64.3A industrial gas turbine platform, the solution supports utility-connected operation, grid synchronization, and flexible deployment configurations.
Main Components
- 3A Gas Turbine
- Generator System
- Main Transformer
- MV Switchgear
- Protection & Control System
- Fuel Gas System
- Cooling System
- Grid Interconnection
Integrated Delivery Scope
The ETAC Power 80 MW-class solution is designed as an integrated utility-scale power generation platform combining major mechanical and electrical infrastructure systems required for grid-connected operation.
Typical project scope may include:
- AE64.3A gas turbine package
- Generator system
- Main step-up transformer
- Medium-voltage switchgear
- Protection and control systems
- Fuel gas conditioning systems
- Cooling and auxiliary systems
- Grid synchronization infrastructure
- SCADA and monitoring integration
- Balance-of-plant electrical infrastructure
Configuration and final project scope can be customized based on site conditions, utility requirements, and customer operational objectives.

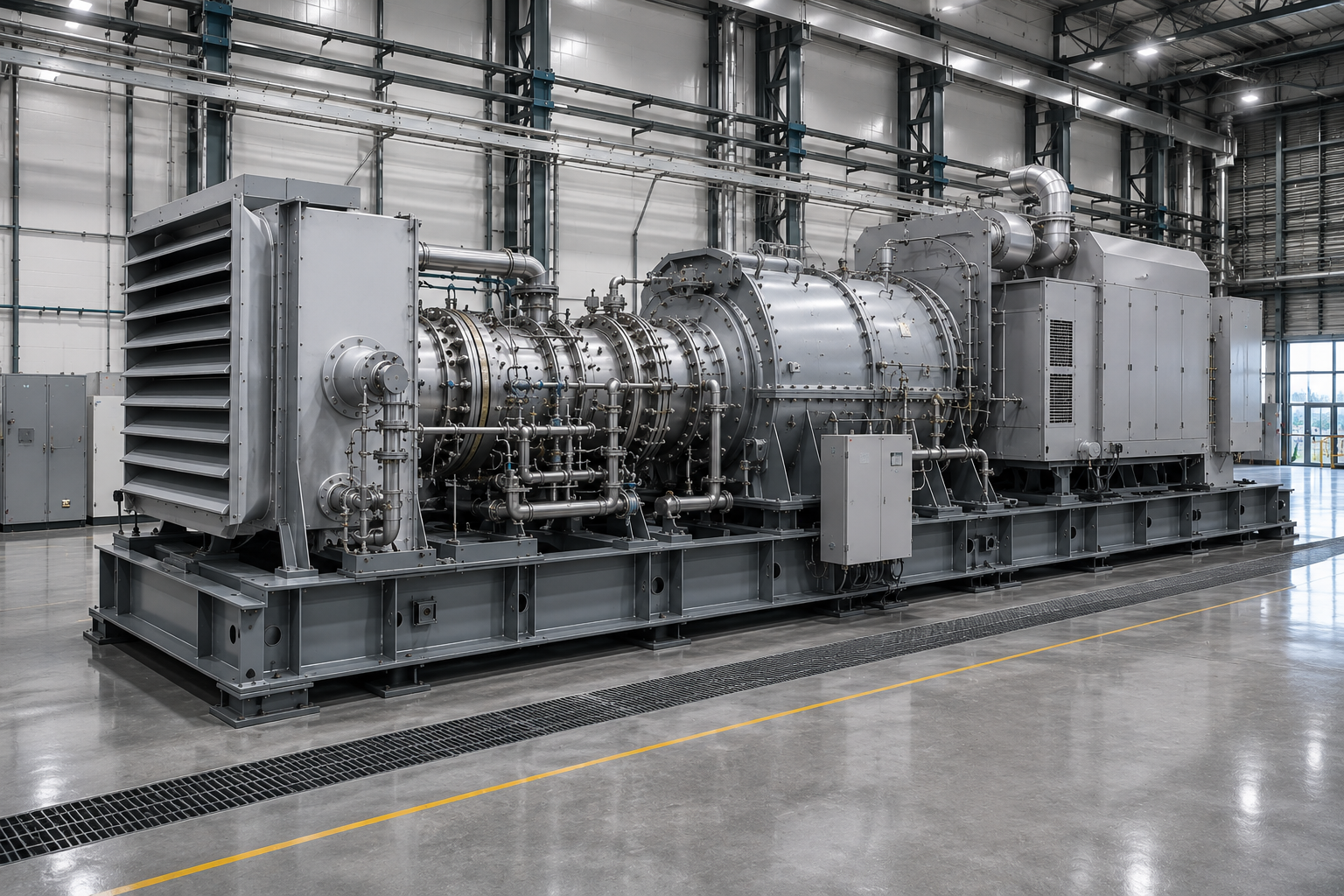

Gas Turbine Technology
The gas turbine package is engineered for high reliability, low emissions, and efficient continuous-duty operation.
Technology Advantages
- High-efficiency combustion system
- Fast-response load capability
- Stable baseload operation
- Industrial-grade turbine platform
- Optimized fuel efficiency
- Reduced environmental impact

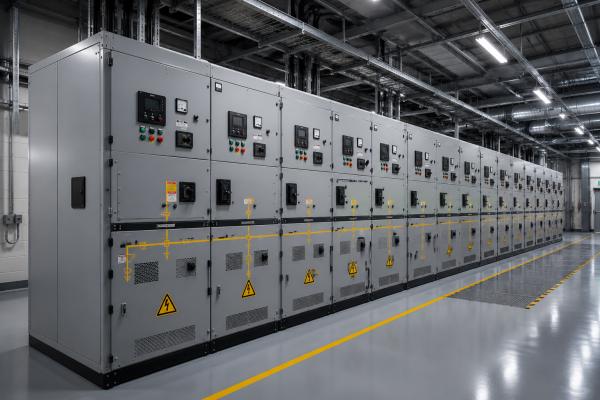

Medium Voltage Integration
The system supports medium-voltage power infrastructure integration for utility and industrial applications.
MV Integration Features
- 11 kV generator output
- 33 kV grid connection
- MV switchgear integration
- Transformer integration
- Grid synchronization
- SCADA communication support
- Parallel operation capability
Flexible Dispatch Capability
The solution is designed to support dynamic AI load profiles and changing operational requirements.
Operational Benefits
- Fast startup capability
- Peak-load support
- Flexible dispatch operation
- Load-following capability
- Backup power support
- Grid stabilization support
Modular Deployment
The modular utility-scale design supports simplified transportation, installation, and future expansion.
- Reduced site construction
- Faster commissioning
- Scalable infrastructure
- Flexible site integration
- Simplified maintenance access
Service & Technical Support
ETAC Power provides complete lifecycle technical support for gas turbine infrastructure projects.
Available Services
- Commissioning Support
- Technical Troubleshooting
- Preventive Maintenance
- Spare Parts Supply
- Remote Technical Support
