CAT 2.3MW Natural Gas Generator
ETAC Power CAT 2.3MW natural gas generator is designed for continuous-duty industrial and data center applications, delivering reliable medium-voltage power with modular deployment flexibility.
CAT official file, please refer to datasheets from CAT official website.
- Current Lead Time: Approximately 12–18 Months
- Standard Warranty: 1 Year or 1000 running hours
- Certifications:
Lead time is subject to change based on production schedule and market demand.
CAT 2.3MW Generator Standard Specifications
| Parameter | Specification |
|---|---|
| Power Range | 2.3 MW |
| Output Voltage | 415V to 13.8kV |
| Frequency | 50 / 60 Hz |
| Fuel Type | Natural Gas |
| Engine Platform | CAT CG Series |
| Speed | 1500 / 1800 RPM |
| Option Mode | Continuous Duty |
| Cooling System | Integrated Radiator Cooling |
| Generator Type | Medium Voltage Generator |
| Option Mode | Continuous Duty |
| Installation Type | Containerized Package |
| Parallel Capability | Yes |
| Emission Standard | Low Emission Compliant |
| Deployment | Modular Outdoor Installation |
| Applications | Data Centers / Industrial / Utility |
Product Overview

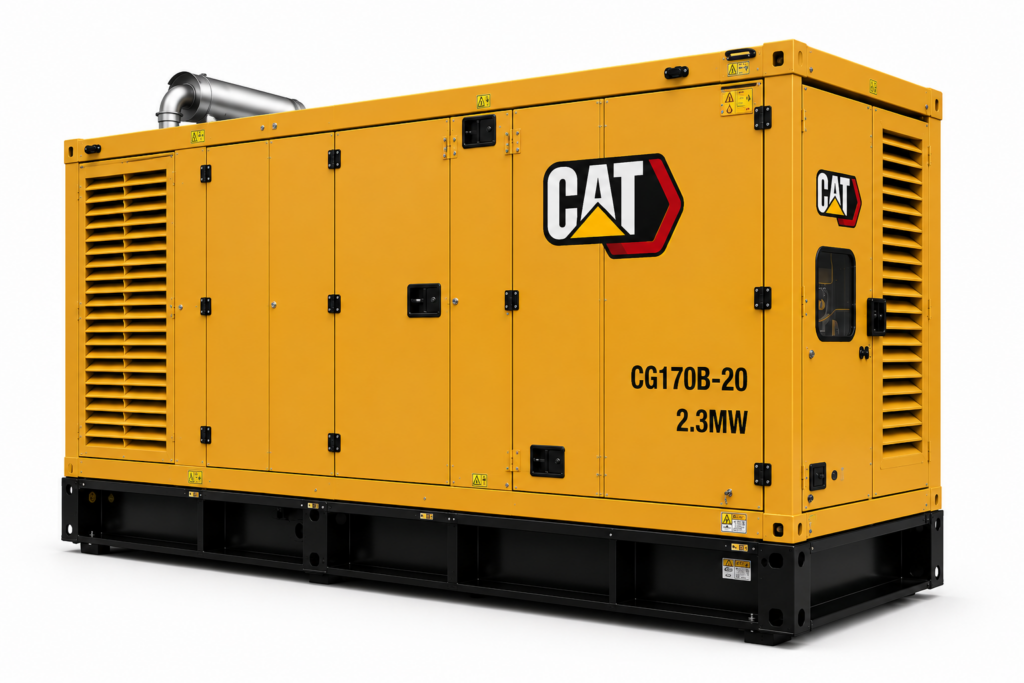

The CAT 2.3MW natural gas generator package is a containerized medium-voltage power solution engineered for high reliability and efficient operation.
Built on the proven CAT gas engine platform, the system supports fast deployment, simplified installation, and scalable power generation for industrial facilities, AI data centers, and distributed energy projects.
Typical Applications
- AI Data Centers
- Industrial Facilities
- Distributed Generation
- Utility Support
- Remote Power
Key Features
- 8kV medium-voltage direct output
- CAT gas engine platform
- Containerized modular design
- High operational reliability
- Low emissions performance
- Fast deployment capability
- Compact outdoor installation package
Turnkey Modular Design
The integrated containerized design combines all major system components into a factory-tested, weatherproof turnkey package, reducing onsite installation, commissioning time, and overall deployment complexity.
Integrated Systems
- Generator Set
- Cooling System
- Control Panel
- Ventilation System
- Cable Entry
- MV Integration
Design Advantages
- Factory-tested package
- Easy transportation
- Reduced installation time
- Flexible site deployment
Medium Voltage Integration
The generator system supports medium-voltage infrastructure integration for industrial and utility applications.
Available Integration
- MV Switchgear
- Transformer Connection
- Grid Synchronization
- SCADA Communication
- Parallel Operation
Service & Support
ETAC Power provides technical support and lifecycle service solutions including:
- Preventive Maintenance
- Technical Troubleshooting
- Spare Parts Supply
- Field Support
- Commissioning Assistance
